SupportRadiant Tubular Heater
Formation of Spiral Wire Element
1. Terminal
2. Heating element wire
3. Regractry material ( Insulating )
4. Tube
線圈加熱元件
Forming of Round Wires

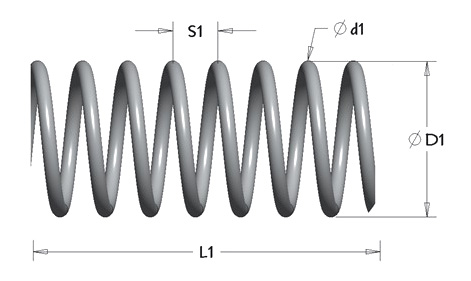

Formation of Spiral Wire Element
S1：Pitch
L1：Working Length
ΦD1：Outer diameter
Φd1：Wire diameter
Process Capability
| Wire diameterΦd1 | Under Φ1.0 | Φ1.0～6.0 | Φ6.0～10.0 |
| Outer diameterΦD1 | Min. Φ3 | Φ3～14 d1 | Max. Φ1000 |
| Working LengthL1 | Customized | ||
| unit：mm | |||
波形加熱元件
Wave Forming of Flat Wires

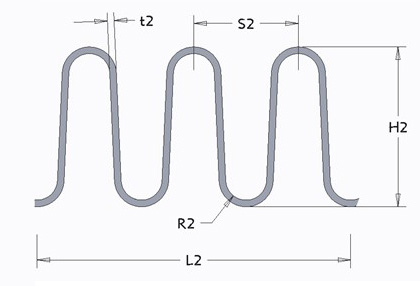

Formation of Deep-Corrugated Strip Element
S2：Pitch
L2：Working Length
t2：Strip thickness
H2：Height
R2：Radius
Process Capability
| Strip thicknesst2 | Under 1.0 | Φ1.0～3.2 | |
| PitchS2 | Dependent on t2 and R2 | ||
| Working LengthL2 | Customized | ||
